Two plate lifting clamp

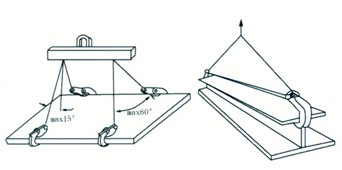

Use: Apply for the horizon hoist of steel plate, I-steel and section steel.
Load range: 0-7 tons.
It is forged by low-carbon high-quality alloy steel.
Rated load is taken by 2 tests, and two or four in group for hoist.
During hoist, collision is forbidden for hung articles.
Test load is 2 times of the max operation load.
Overload use is forbidden.
Model | Max work load (t/2pcs) | Test load (t/2pcs) | Aperture size (mm) | Self weight(kg) |
2plate1 | 1 | 2 | 0-40 | 2 |
2plate2 | 2 | 4 | 0-50 | 3.5 |
QS3.2 | 3.2 | 6.4 | 0-60 | 6 |
2plate5 | 5 | 10 | 0-70 | 14.5 |
2plate7 | 7 | 14 | 0-90 | 22 |
