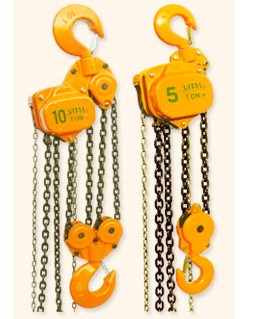

HSVT CHAIN BLOCK
HS-VT Serice Chain Hoists£ºnovel style; efficient and safe; wonderful artical and excellent nature; strike out in a new line. Conforms to CE and GS Standard.
Gear: They are innovated symmetrical arrayed highspeed synchronous gears, and are made from international standard gear steel. Compared with common gears, they are more wearable and steady, and more laborsaving.
Chain: Adopts high strong chain and high precision welding technology, meet ISO3077-1984 international standard; fits for gusty overload work conditions; takes your hands a better feeling; multi angel operation (better with 45 angel).
Hook: Made of high class alloy steel, it has high strength and high security; applying new design. Weight will never escape.
Main Components: All made of high class alloy steel, with high priecision and security.
Framework: Slight design and more beautiful; with less weight and smaller work area.
Limit Switch: Using limit switch component in design to protect chain and ensure securiry.
Encloser: Made of high class steel, more firmly and dexterous.
Plastic Plating: By adopting advanced plastic plating technology inside and outside, it enjoys durable color.
Model | HS-VT1/2 | HS-VT1 | HS-VT1-1/2 | HS-VT2 | HS-VT3 | HS-VT5 | HS-VT10 | |
Capacity (T) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | |
Standard lifting height (m) | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3.5 | |
Testing load (T) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 15 | |
Min. Headroom (hook to hook) (mm) | 285 | 315 | 340 | 380 | 475 | 600 | 700 | |
Pulling force to full load (N) | 25 | 33 | 34 | 34 | 35 | 39 | 41 | |
No.of load chain strand | 1 | 1 | 1 | 1 | 2 | 2 | 4 | |
Diameter of load chain (mm) | 6.3 | 6.3 | 7.1 | 8 | 7.1 | 9.1 | 9.1 | |

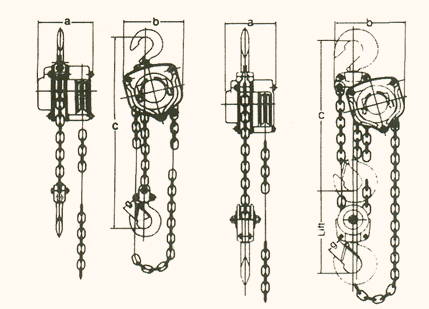

Dimensions (mm) | c | 315 | 380 | 475 | 600 | 740 | ||
a | 147 | 179 | 147 | 179 | 179 | |||
b | 157 | 204 | 206 | 263 | 367 | |||
g | 30 | 37 | 43 | 47 | 67 | |||
Net wt. (Kg) | 8.4 | 11 | 13.5 | 21 | 22 | 40 | 77 | |
Gross wt. (Kg) | 9.4 | 12 | 14.5 | 22 | 23 | 41.5 | 85 | |
Packing Size (cm) | 30*17*32 | 30*17*32 | 30*17*32 | 30*17*32 | 30*17*32 | 40*20*34 | 62*50*26 |
