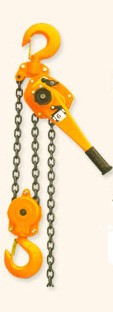

HSHVT LEVER BLOCK
Characters:
Operation factor, durablity all is improved
Block-proof function and flexible operation
Quick handle response
High efficiency design of short handle
Quick return in case of sudden down
Once shape steel plate and shelf,strong and long durability
Specifications:
| Model | HSH-VT-0.75 | HSH-VT-1.5 | HSH-VT-3 | HSH-VT-6 | |
| Capacity (T) | 0.75 | 1.5 | 3 | 6 | |
| Standard Lift (m) | 1.5 | 1.5 | 1.5 | 1.5 | |
| Test load (T) | 1.125 | 2.25 | 4.5 | 9 | |
| Headroom Hmin (mm) | 295 | 335 | 405 | 550 | |
| Hand Pull Force (Kg) | 15 | 18 | 20 | 24 | |

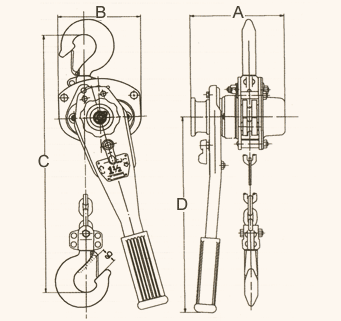

| Main Dimensions (mm) | A | 148 | 163 | 181 | 244 |
| B | 128 | 148 | 181 | 244 | |
| C | 295 | 335 | 405 | 550 | |
| D | 256 | 368 | 368 | 368 | |
| G | 27 | 34 | 43 | 47 | |
| Net wt. (Kg) | 6.9 | 9.7 | 16.3 | 26.7 | |
