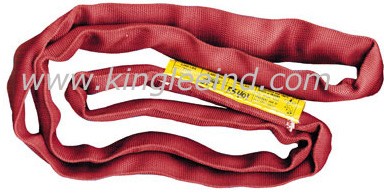

Round sling has the maximum load up to 300T, effective length up to 80m, safety factor adopted is normally 7:1, 6:1.

Round sling is made of high tension industrial yarn(100%PES), the strands inside are as a form of endless cycle.

The outside sleeve is also made of 100%PES, not for the loading, but to protect the strands inside.

Round slings are the ideal solution for the safe lifting of loads, whether this is to be at your works, for loading and unloading or for use at a building site.

The round slings will protect items being lifted. If the sling is damaged badly, the outside sleeve is breakage,and the outside strands will go out, so the sling can not use any more.

Their sturdy core and a covering layer will guarantee a long serviceable life, even when in continuous use, round slings are also repairable.




Max.SWL=Mode Coefficient P*Rated Working Load     Max.SWL of lifting method
Color

Minimum Breaking Load

Rated Working Load

Upright P=1

Choked P=0.8

Angle 45 P=1.8

Angle 90 P=1.4

 (Kg)

(Kg)

(Kg)

(Kg)

(Kg)

(Kg)

purple

6000

1000

1000

800

1800

1400

green

12000

2000

2000

1600

3600

2800

yellow

18000

3000

3000

2400

5400

4200

grey

24000

4000

4000

3200

7200

5600

red

30000

5000

5000

4000

9900

7000

brown

36000

6000

6000

4800

10800

8400

blue

48000

8000

8000

6400

14400

1120

orange

60000

10000

10000

8000

18000

14000

orange

72000

12000

12000

9600

21600

16800

orange

120000

20000

20000

16000

36000

28000

orange

180000

30000

30000

24000

54000

42000
