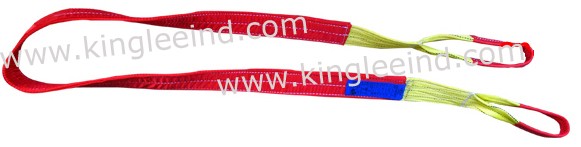

PE WEBBING SLING EYE EYE TYPE
The unique advantages of webbing slings:
1, Can be single ply or double ply, sawing method is different.
2, The specification can be adjusted according to the customers' needs.
3, Loading surface is wide, to reduce the weight at each loading point.
4, No damages to tender objects.
5, Various loading method.
6, High strength/weight ratio.
7, Anti-abrasion and anti-incision protection sleeve can be attached.
8, Has special label, working load is differentiated by colors according to international standard. Easy to identify even if the sling has been abrased.
9, Light and soft, can be used in small narrow space.
10, After PU processing, anti-abrasion is enhanced.
11, Non-conductive, no danger of electric stroke.
12, Compliance with European Standard En1492-1:2000.
13, The elongation of sling is not more than 7%.
14, The working temperature range -40~100 centi degree.
Max.SWL=Mode Coefficient P*Rated Working Load Max.SWL of lifting method | ||||||
Color | Minimum Breaking Load | Rated working Load | Upright P=1 | Choked P=0.8 | Angle 45 P=1.8 | Angle 90 P=1.4 |
(Kg) | (Kg) | (Kg) | (Kg) | (Kg) | (Kg) | |
purple | 6000 | 1000 | 1000 | 800 | 1800 | 1400 |
green | 12000 | 2000 | 2000 | 1600 | 3600 | 2800 |
yellow | 18000 | 3000 | 3000 | 2400 | 5400 | 4200 |
grey | 24000 | 4000 | 4000 | 3200 | 7200 | 5600 |
red | 30000 | 5000 | 5000 | 4000 | 9900 | 7000 |
brown | 36000 | 6000 | 6000 | 4800 | 10800 | 8400 |
blue | 48000 | 8000 | 8000 | 6400 | 14400 | 11200 |
orange | 60000 | 10000 | 10000 | 8000 | 18000 | 14000 |
orange | 72000 | 12000 | 12000 | 9600 | 21600 | 16800 |
orange | 120000 | 20000 | 20000 | 16000 | 36000 | 28000 |
orange | 180000 | 30000 | 30000 | 24000 | 54000 | 42000 |
