PE Lifting Slings

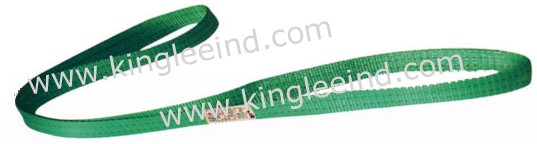

PE WEBBING SLING ENDLESS TYPE

PE WEBBING SLING,ENDLESS TYPE
EMAIL

Webbing sling, very compact design and a new processing technique for the webbings are what give webbing slings good breaking elongation. A specially woven edge protection and reinforced loops all give protection from abrasion and damage. It is this that guarantees an extremely long service life. The webbing slings are manufactured at high premises. This permits a precise degree of quality control.

Max.SWL=Mode Coefficient P*Rated Working Load Max.SWL of lifting method
Color	Minimum Breaking Load	Rated working Load	Upright P=1	Choked P=0.8	Angle 45 P=1.8	Angle 90 P=1.4
Color	(Kg)	(Kg)	(Kg)	(Kg)	(Kg)	(Kg)
purple	6000	1000	1000	800	1800	1400
green	12000	2000	2000	1600	3600	2800
yellow	18000	3000	3000	2400	5400	4200
grey	24000	4000	4000	3200	7200	5600
red	30000	5000	5000	4000	9900	7000
brown	36000	6000	6000	4800	10800	8400
blue	48000	8000	8000	6400	14400	11200
orange	60000	10000	10000	8000	18000	14000
orange	72000	12000	12000	9600	21600	16800
orange	120000	20000	20000	16000	36000	28000
orange	180000	30000	30000	24000	54000	42000
