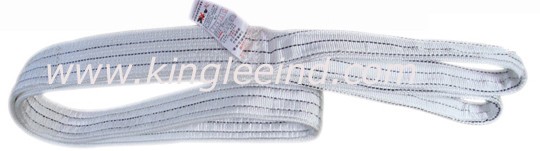

PE WEBBING SLING FOR CHEMICAL INDUSTRY
As well as the advantages of plat webbing slings, the white webbing slings have the special advantage:they are resistant to mineral acids and alkalis, are used for lifting goods in chemical industry.
| Max.SWL=Mode Coefficient P*Rated Working Load Max.SWL of lifting method | ||||||
Color | Minimum Breaking Load | Rated working Load | Upright P=1 | Choked P=0.8 | Angle 45 P=1.8 | Angle 90 P=1.4 |
(Kg) | (Kg) | (Kg) | (Kg) | (Kg) | (Kg) | |
purple | 6000 | 1000 | 1000 | 800 | 1800 | 1400 |
green | 12000 | 2000 | 2000 | 1600 | 3600 | 2800 |
yellow | 18000 | 3000 | 3000 | 2400 | 5400 | 4200 |
grey | 24000 | 4000 | 4000 | 3200 | 7200 | 5600 |
red | 30000 | 5000 | 5000 | 4000 | 9900 | 7000 |
brown | 36000 | 6000 | 6000 | 4800 | 10800 | 8400 |
blue | 48000 | 8000 | 8000 | 6400 | 14400 | 11200 |
orange | 60000 | 10000 | 10000 | 8000 | 18000 | 14000 |
orange | 72000 | 12000 | 12000 | 9600 | 21600 | 16800 |
orange | 120000 | 20000 | 20000 | 16000 | 36000 | 28000 |
orange | 180000 | 30000 | 30000 | 24000 | 54000 | 42000 |
