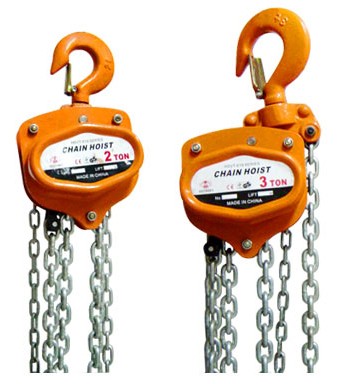

HSVT619 CHAIN BLOCK
Characters:
Adopting roller bearing save labor
Two independent pawls give double safety and make fine adjustments possible
Drop-forged and expertly heat treated for great strength and long wearing
Heavy duty and compact design to meet ail present world standard
Conforms to CE safety Standard
Specifications:
Model | HSA-1 0.5 | HSA-1 1 | HSA-1 1.5 | HSA-1 2 | HSA-1 3 | HSA-1 5 | |
Capacity (T) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | |
Standard lifting height (m) | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | |
Testing load (T) | 6.3 | 12.5 | 18.8 | 25 | 37.5 | 75 | |
Pulling force to full load (N) | 230 | 310 | 320 | 330 | 340 | 380 | |
Min. Headroom (hook to hook) (mm) | 310 | 340 | 380 | 360 | 480 | 555 | |
Diameter of load chain (mm) | 6 | 6 | 8 | 6 | 8 | 8 | |
No.of load chain strand | 1 | 1 | 1 | 2 | 2 | 3 | |

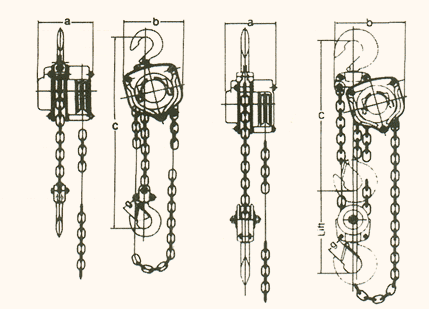

Dimensions (mm) | a | 143 | 151 | 163 | 151 | 151 | 163 |
b | 148 | 168 | 193 | 178 | 210 | 297 | |
c | 310 | 340 | 380 | 360 | 480 | 555 | |
Net weight¡¡(Kg) | 9.4 | 12 | 17 | 15 | 20 | 35 | |
Packing Size (cm) | 24*18.5*17 | 27*19*19 | 29*21*21.5 | 25*19*18 | 36*24*22 | 49*29.5*19 | |
