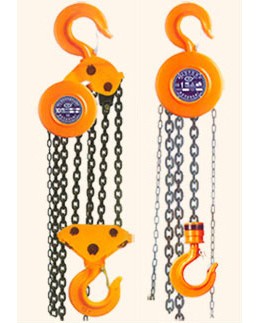

HSZ type chain hoist is a widely used manual hoisting machinary which is easy to use and carry. It can be used in factory, mine, agricuture, electricity, construction site, wharf and dock. And it can also be used in installing of machinery, lifting, loading and unloading in the warehouse, especially suitable to be used in the open air and the place without power source. We manufacture the products in accordance with national standard, use the symmetry arrayed two-stage gear-driven structure. It is of rational structure, dainty material, advanced structure, beautiful appearance, small volume, light weight, big component strength, high toughness, safety and durability. The product has been selling well both at home and abroad.




Model

HSZ-1/2

HSZ-1

HSZ-11/2

HSZ-2

HSZ-3

HSZ-5

HSZ-10

HSZ-20

Capacity (T)

0.5

1

1.5

2

3

5

10

20

Standard lifting height (M)

2.5

2.5

2.5

2.5

3

3

3

3

Testing load (T)

0.75

1.5

2.25

3

4.5

7.5

12.5

25

Min. Headroom (hook to hook) Hmin.(MM)

255

306

368

444

486

616

700

1000

Pulling force to full load (N)

221

304

343

314

343

383

392

392

No.of load chain strand

1

1

1

2

2

2

4

8

Diameter of load chain (MM)

6

6

8

6

8

10

10

10

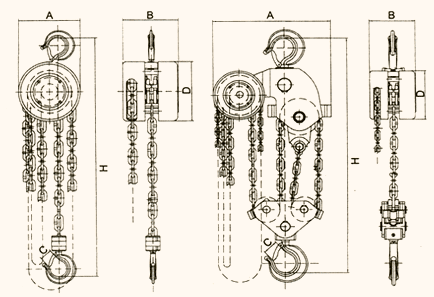

Dimensions (MM)

A

125

147

183

147

183

215

360.5

585

B

111

126

141

126

141

163

163

191

C

24

28

34

34

38

48

64

82

D

134

154

192

154

192

224

224

224

Net Wt. (Kg)

8

10

16

14

24

36

68

156

Gross Wt. (Kg)

10

13

20

17

28

45

83

194

Packing Size (cm)

28*21*17

30*24*18

34*29*20

33*25*19

38*30*20

45*35*24

62*50*28

70*46*75

Extra weight per meter extra lift (Kg)

1.7

1.7

2.3

2.5

3.7

5.3

9.7

19.4
